Car elevator TRAFFICO - fast, safe and convenient car parking
Faster parking for added flexibility
Parking spaces are in short supply! When space for access ramps becomes an issue, we provide the optimal solution.
The hydraulic car elevator TRAFFICO transports both car and passengers quickly and reliably to the desired parking level. A wide selection of options is offered for this classic car lift to meet individual requirements.
Convenience important?
The most convenient way to initiate operation is by remote control or smart card. The reader can be installed next to the lift entrance on a pedestal, for example, with pull wire switches at each level.
Light beams between the cabin and shaft doors avoid any damage to the car during entry and exit. Light barriers facilitate vehicle positioning, thereby speeding up access. In the case of systems with two stopping points, the journey to the other level commences automatically as soon as the vehicle is positioned correctly
Benefits of car elevator TRAFFICO
Watch the TRAFFICO car lift in action
This TRAFFICO car lift in the centre of London eases access to a ground floor parking area.
Technical Data TRAFFICO
| Lifting height | max. 25 m |
| Nominal speed | 0.2 - 0.6 m/s |
| Pit depth | 1,250 mm (standard) - reduction possible |
| Nominal load | max. 5,730 kg |
| Cabin width | 2,500 - 3,000 mm |
| Cabin depth | 5,500 - 7,000 mm |
| Cabin height | 2,100 - 2,300 mm |
| Stops | 2 - 8 |
| Accesses | 2 - 16 (one above the other or opposite) |
| Shaft head height | min. 3,300 mm - depending on headroom |
| Shaft width | Cabin width + 800 mm |
| Shaft depth | Cabin depth + 800 mm |
| Axle load | max. 1,750 kg - forklift operation prohibited |
| Control | Pushbutton control in microprocessor technology with extensive control functions |
| Drive | Hydraulic power unit with pump-motor suboil unit |
| Operating modes | Fully automatic travel (2 stops) automatic travel (from 3 stops) |
| Directives | Lift Directive 2014/33/EC DIN EN 81-20 |
| Passenger ride | Car with passenger escort allowed |

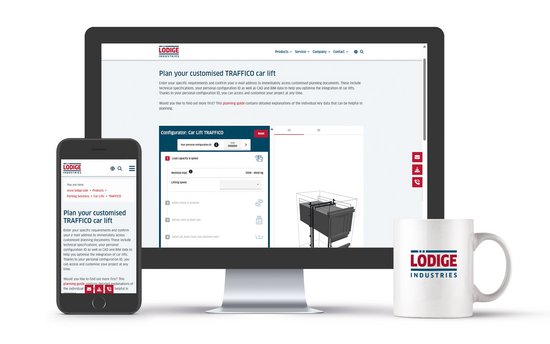

Plan your customised TRAFFICO car lift now
Use the car lift configurator and immediately receive planning-relevant data as well as 2D and 3D drawings to help you integrate the car lift in the best possible way.
See right from the start how much space you can save without an entrance ramp by planning a lift instead. Try it out.
Possible applications of TRAFFICO:
Apartment houses
With our car lifts, you can create additional parking spaces in apartment buildings to give residents an easy and luxurious parking experience without having to save on living space.
The TRAFFICO car lift is a classic car lift with automatic sliding doors, a high conveying speed and extensive cabin equipment. The TRAFFICO is particularly well suited for use in apartment buildings for the creation of 6 to 40 parking spaces.
Office buildings
Our car lifts save the space of an access ramp, creating more parking spaces in your office building. The quick and easy entry offers you and your employees a comfortable parking experience.
Due to its high conveying speed, the TRAFFICO is suitable for up to 40 parking spaces.
Hotels
A car lift for your hotel allows you to create more and easily accessible parking spaces for your hotel guests and staff. Not only is it easy and quick to transport cars to different levels, but our car lifts can also be used to transport cleaning trolleys, laundry and rubbish containers horizontally.
The TRAFFICO is a classic car lift with automatic sliding link doors and is suitable for a parking area with up to 40 parking spaces.
-
Car lift TRAFFICO
Product brochure -
TRAFFICO, CARRICO - car lifts, Planning guide
(Status: 2022-11-25) -
TRAFFICO, Planning Bundle (EN)
Cabin size: 2800 x 5800 x 2100 mm Tender specification, sample drawings (pdf & dwg)
Less frequent traffic - less space required
Max. lifting height: 25 m
Max. speed: 0.15 m/s
Pit depth: 850 mm
Particularly suitable for up to 26 parking places
Easy to plan: no pit - no machine room
Max. lifting height: 24 m
Max. speed: 0.15 m/s
No pit required
Particularly suitable for up to 20 parking places
